Presettable Timers

  • Product Info
  • Technical Specifications

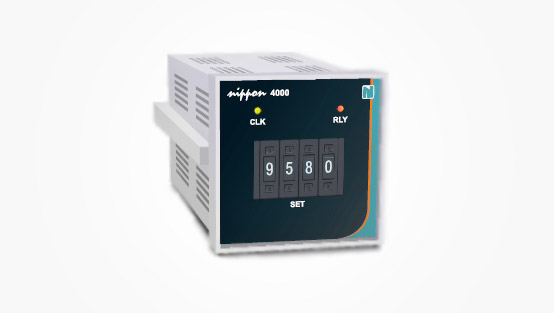

Anupam's 4000 is low cost presettable timer. Presettable timers with and without battery backup facility. They are used in plastic moulding machines, Chemical Plants, Textiles, Pharmaceutical machines, ovens, dryers, furnaces, scientific and laboratory equipments, etc. where accurate time measurement and control is required.


  • Quartz Crystal time base having accuracy 0f 0.01%
  • Bright Display
  • Bright easy to read Display
  • Time counting in Seconds, fraction of seconds, minutes, Hours available
  • CMOS IC's used for better reliability
  • Modular System
Element Type Specification
Range 0 to 99, 999, 9999, Seconds / Minutes / Hours fraction of Seconds.
Time Base Derived from QUARTZ CRYSTAL
Accuracy Repeat accuracy of 0.01%
Display 2, 3 or 4 digit bright Seven Segment display.
Time Setting By Thumbwheel Switches.
Logic Delayed On, Delayed Off, Auto reset.
Output O.E.N. relay rated at 230 V/6AMP.
Supply 230 VAC ± 10%, 50 Hz.
Box 96 (H) x 96 (W) X 180 (D), mm DIN size box with modular cards.
Also available in 72 (H) X 72 (W) X 110 (D), mm DIN size.


All information in Anupam Heaters ("ANUPAM") Catalog & Website was considered accurate and correct at the time of printing & publishing. ANUPAM has the right to make changes to specifications, designs and the Sales Terms and Conditions without prior notice. ANUPAM is not responsible for any typographical errors.
