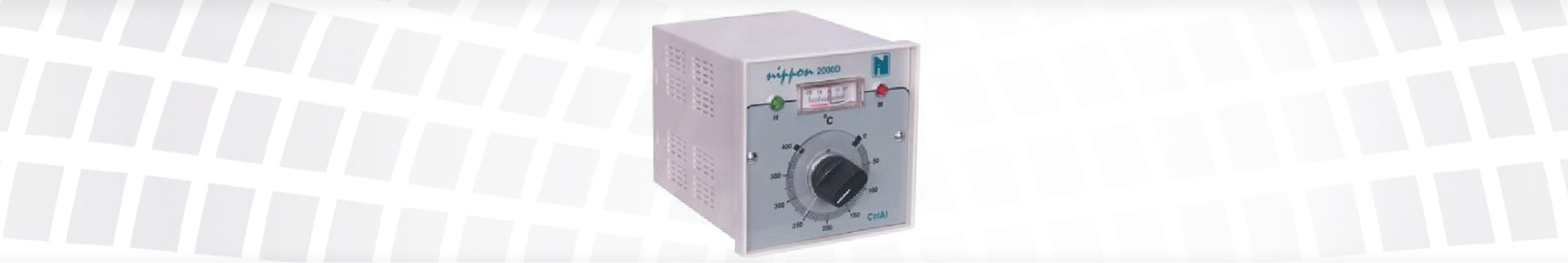

Analog Temperature Controller

  • Product Info
  • Technical Specifications

Anupam's 2000D are blind temperature controllers with deviation meter and without deviation meter respectively. They are most rugged, reliable, economical and widely accepted solution for Plastic molding, Laminating, Heat sealing & Pharmaceutical machines. They are useful in many other temperature applications like ovens, furnaces, dryers, chemical plants, Foundry etc.


  • Thermocouple and Pt-100 Inputs
  • Several ranges
  • Automatic ambient temperature Compensation
  • Thermocouple break protection
  • On/Off or proportional control
  • Attractive dial for setting
  • Modular design
Element Type Specification
Inputs Fe/K,Cr/Al, Pt-Pt Rh & other thermocouples, Pt-100, Pt-50 RTD's....etc....
Range 0-100,0-400,0-600, 0-1200, 900-1600°C.... etc....
Setting With knob and attractive calibrated dial.
Set Point Accuracy ±0.8% of Span
Output Relay rated 230V/10A
Control On-Off or Time Proportional. On-Off control with 2°C dead band.
Time Proportional control with ±2°C hysteresis & 15 second time cycle.
Time Proportional Control as per the application.
Deviation Meter Nippon 2000D is with -20°C to +20°C deviation indicator showing deviation between set and process temperature.
L.E.D. Indicators Green L.E.D. indicaters relay on.
Red L.E.D. indicaters relay off.
Box Size Modular design in
96H x 96W x 100D DIN size box
72H x 72W x 100D DIN size box
48H x 48W x 100D DIN size box
DIN Rail Box
Supply : 230 VAC ± 10% 50HZ
