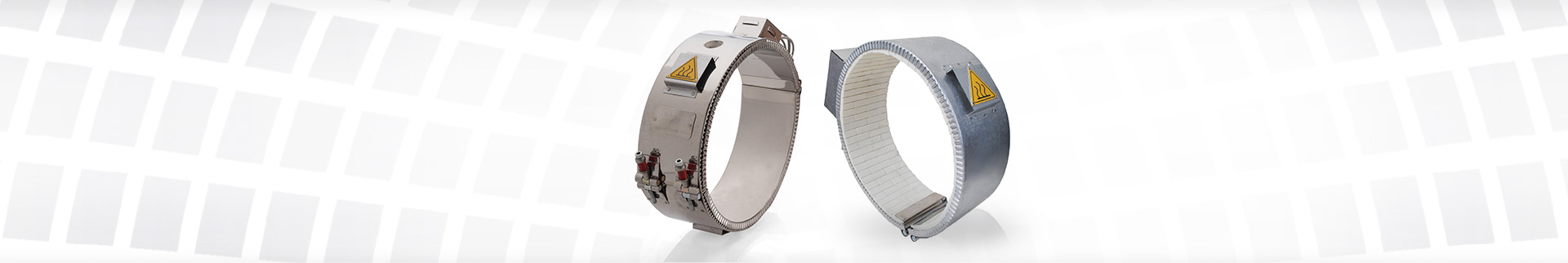

Ceramic Die Heaters

  • Product Info
  • Application
  • Technical Specification
  • Ordering Information

Ceramic Die Heaters manufactured in two half’s & provided with spring loaded clamping system provides excellent grip of the heater mounted vertically. Heaters are provided with inside cover to protect against frequent dismantling of dies.

  • Blow Molding Machine
  • Extrusion Line
Resistance +10% -5% Overall Thickness 15 mm
Wattage +5% -10% Minimum Dia. 38 mm
Max. Watt Density 8 watts / sq.cm Minimum Width 25 mm
Voltage 220V AC to 480V AC Width - Normal Multiple of 15 + 6mm
Maximum Temp 800 oC Std. gap between edges 5 to 10 mm

Ordering Information

  • Select from the sketch given below in which category your heater falls to ensure no fitment problem
  • Give all necessary information preferably in millimeter
  • We are in a position to manufacture and supply Ceramic Die Heater which do not fit any of the following sketches. Kindly give us detailed sketch

Ceramic Die Heater

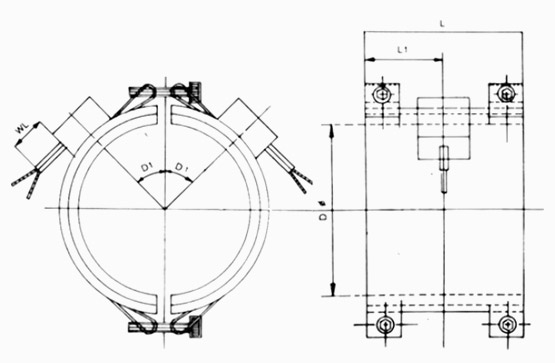

Ceramic Die Heater With Two Half Without Thermocouple Hole.

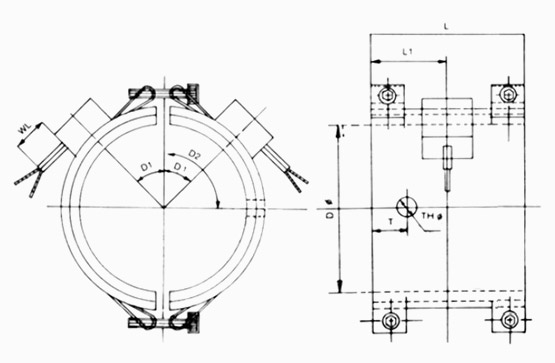

Legend / Technical Features / Technical Data

  • LLength Of Heater
  • WWidth Of Cutout
  • LILocation Of Terminal Box
  • TIDepth Of Cutout
  • Inside Diameter Of Heater
  • D1Degree Of Terminal Box
  • TLocation Of Thermocouple Hole
  • D2Degree Of Thermocouple Hole
  • THØThermocouple Hole Diameter
  • D3Degree Of Cutout
  • WLWire Length
